Tempat asal: | CINA |
Nama merek: | PLM |
Sertifikasi: | CE |
Nomor model: | PLJT-250-12 |
Kuantitas min Order: | 1 set |
---|---|
Harga: | USD 8000 SET |
Kemasan rincian: | Ekspor kotak kayu standar |
Waktu pengiriman: | 8 HARI KERJA |
Syarat-syarat pembayaran: | L/C, D/A, T/T, Western Union, MoneyGram |
Menyediakan kemampuan: | 7 Set Per mulut |
Nama Produk: | PLJT-250-12 Mesin Kliping Meja Putar otomatis penuh | Jenis: | Mesin Pemotong |
---|---|---|---|
Jaminan: | 1 tahun | warna: | Putih keperakan |
Penggunaan: | Mesin Kliping Meja Putar | Ukuran: | Ukuran standar |
Kemampuan produk: | 20~25 pcs/menit | Sumber Daya listrik: | 220V/50HZ |
PLJT-250-12 Full-auto Turntable Clipping Machine
一, Features
1,The whole working process of the steel strip forming-clipping-cutting-resuming is automatically finished by the PLC control pneumatic and machine.it is fast speed and high efficiency.
2.The steel strip clip the filter paper ends tightly to prevent the filter element from leakage.
3,The clipping height and width are easily to be adjusted and keep consistency as well.
4,The computer monitor control is used,which is easy operation.
5,The are 12 clip and convey stations,it is fast speed and high efficiency.
6,This machine has the cylinder un-loading device,it is high degree of the automatic.
三, Applications
This machine is professionally used for clipping the paper ends using the steel strip.
PLJT-250-12 Full-auto Turntable Clipping Machine parameter
Product capability | 20~25pcs/min |
Filter paper height | 30~250mm |
Pleating height | 10~38mm |
Sizes of Steel strips |
a)thickness 0.25~0.3mm b)width 12mm c)coiled material inner Dia.>150mm, outer Dia.<600mm |
Motor power | 1KW |
Power supply | 220V/50hz |
Working sir pressure | 0.6Mpa |
M/C weight | 600kg |
M/C siz | 2080×1400×1500mm(L×W×H) |

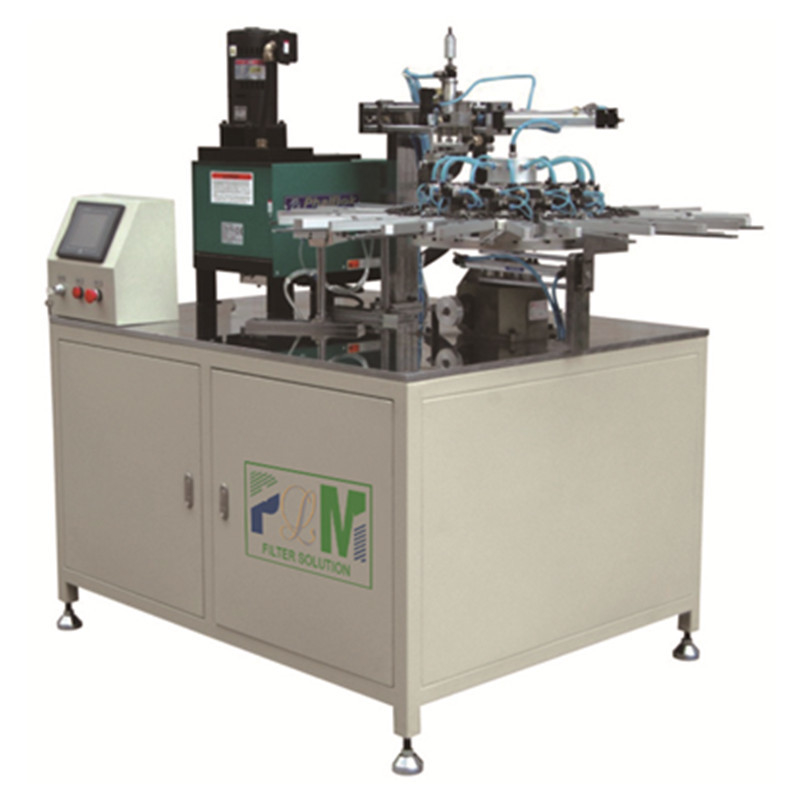

PLJT-250-12 Full-auto Turntable Clipping Machine photo
PLM – YOUR RELIABLE FILTER ELEMENT PRODUCTION HELPER
Founded in 1990, PLM specialized in Filter element manufacturing, after years of development, PLM has grown into a total solution designer including consultation, machine and material supply, and technical support. Our machines have been recognized worldwide for superior precision, outstanding rigidity, and exceptional reliability. Today we have more than 200 kinds of machines and models fulfilling the industry's diverse requirements.
PLM SOLUTIONS CONTRIBUTE TO YOUR SUCCESS
PLM is specialized in providing filter production solutions for our customers. Until now, our solutions cover car & heavy duty air filters, cabin filters, oil & fuel filters, and primary/middle/high-efficiency filters. Over 70 kinds of filter production machines and test machines satisfy customers with different requirements and budgets. A complete line of filter materials saves customers purchasing time and cost. All of these help customers efficient production and high output. Our online and on-site supports eliminate customers' worries. We have gained the ISO, CE, and CO certifications, which verify our machines and materials accord with international and market requirements.
TOTAL SOLUTIONS HELP YOUR QUALIFIED & EFFICIENT PRODUCTION
PLM is committed to filter element machines and filter material production for several years, we are proficient at offering total solutions tailored to maximize your product value. No matter whether you are a beginner or get trucked in trouble, You'll get a satisfied solution here.
